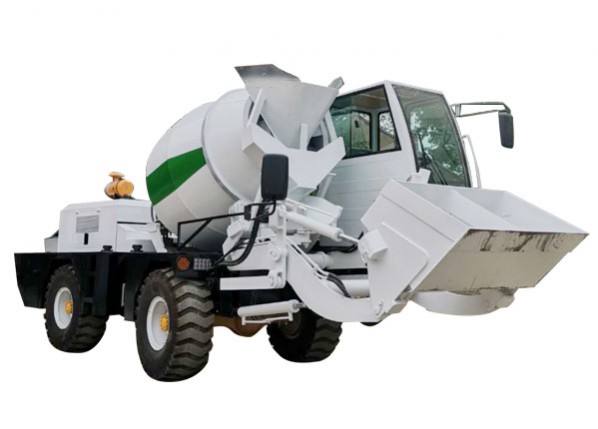

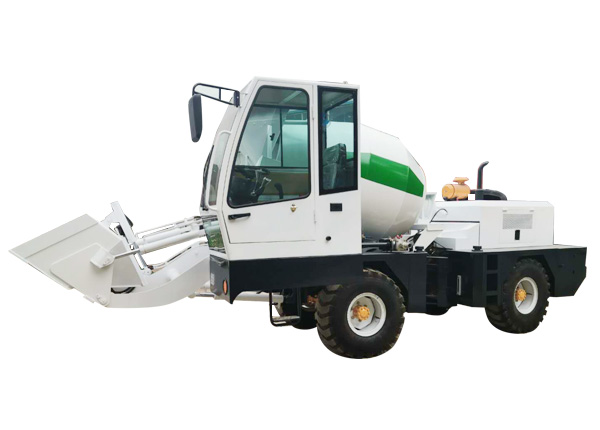

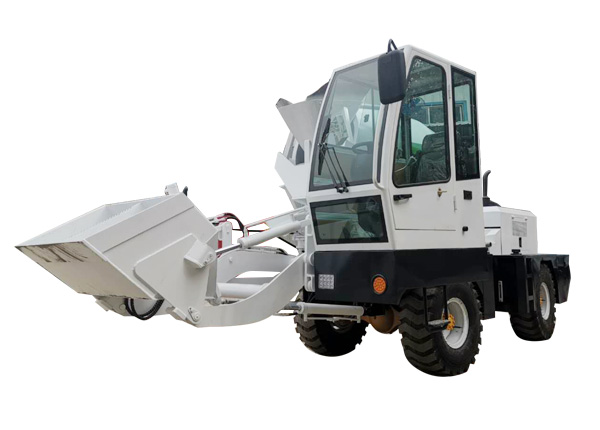

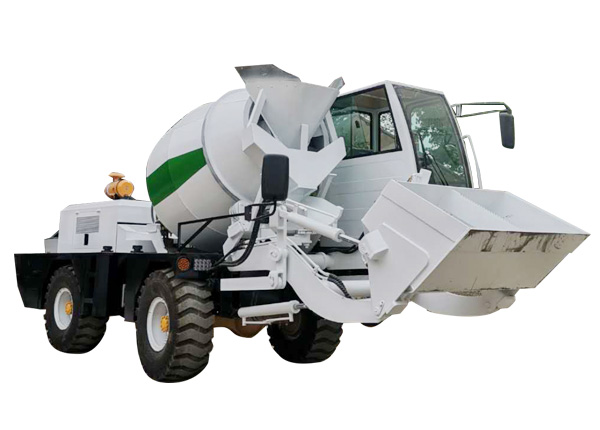

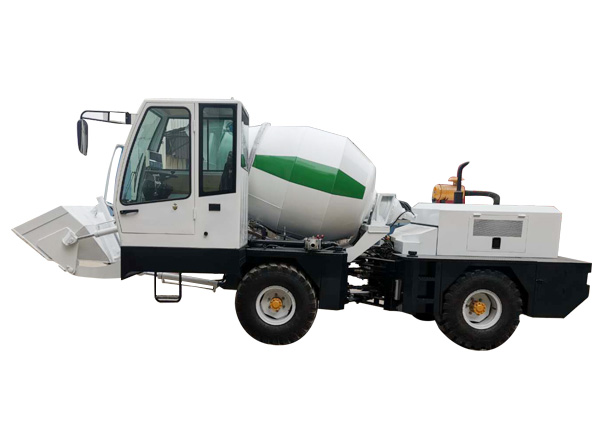

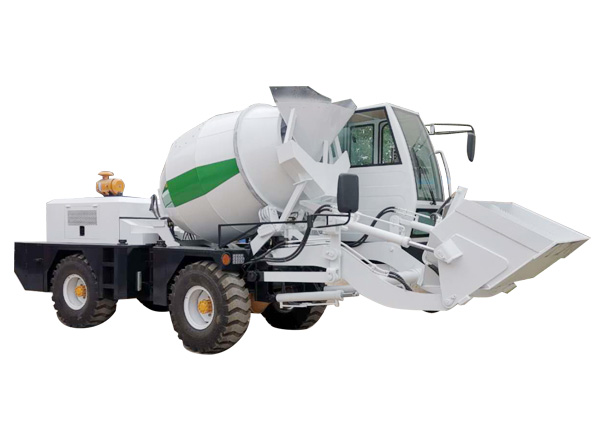

1.5m3 MIXER LOADER
- 产品分类：self loading concrete mixer
- 浏览： 日期：2019-06-11
产品描述
The mixer truck is small and suitable for small projects such as tunnels; Articulated steering for easy maintenance
|
Main Parameter |
ZY 1500 |
|
Drum capacity |
2.5CBM |
|
Real concrete yield per batch |
1.5 CBM |
|
Drum rotation speed |
0-16 rpm |
|
Productivity |
Up to four batches per hour |
|
Transmission |
Hydraulic |
|
|
4 wheel driver |
|
Tyre size |
20.5/70-16 |
|
Engine |
YN云内 |
|
Model |
27GBZ |
|
|
Diesel Water-cooled |
|
|
55kw |
|
Speed Range |
F1:1-8 KM/H |
|
|
F2:8-25 KM/H |
|
|
R1:1-8 KM/H |
|
|
R2:8-15 KM/H |
|
JOYMIX |
One joystick control main functions |
|
Weight |
5200kg |
|
Overall dimension(L*W*H) |
6750×2350×2450 mm |
